PUSHrack V3 Bike Rack Installation Instructions for Camper Vans

Posted by PUSH components

23. April 2026

On 23. April 2026

Installation, Features, Accessories & Theft Protection

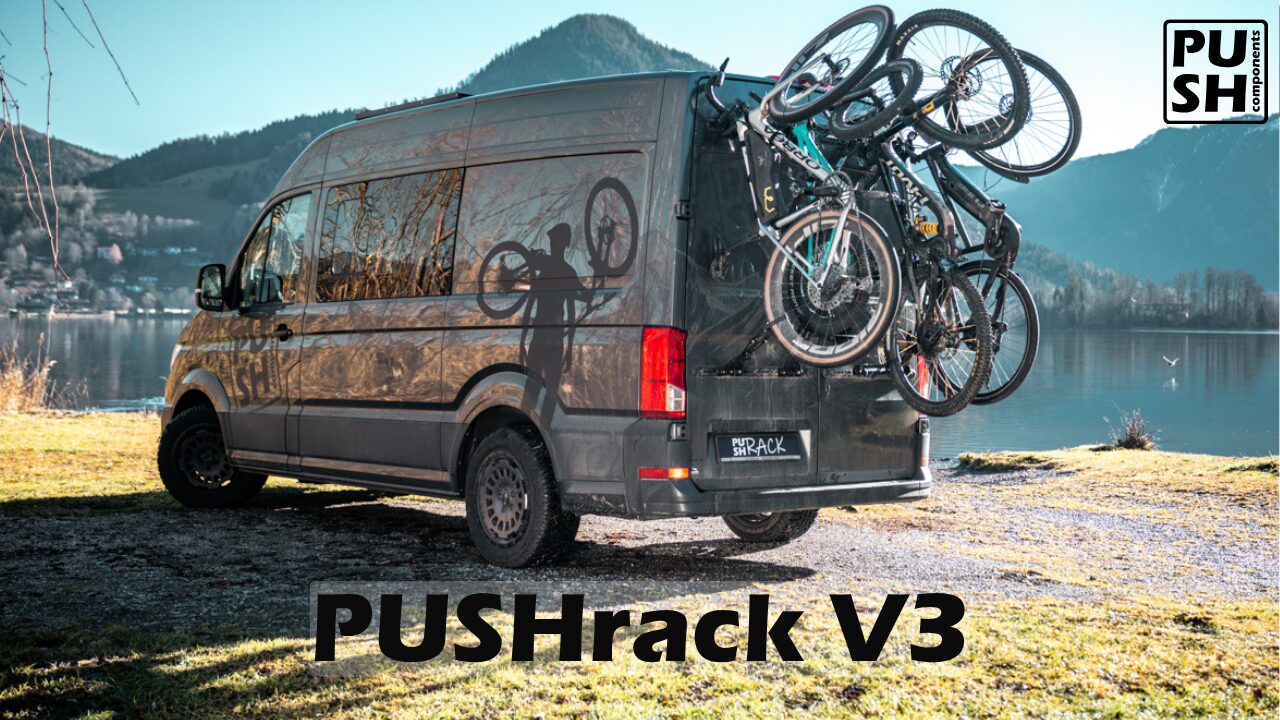

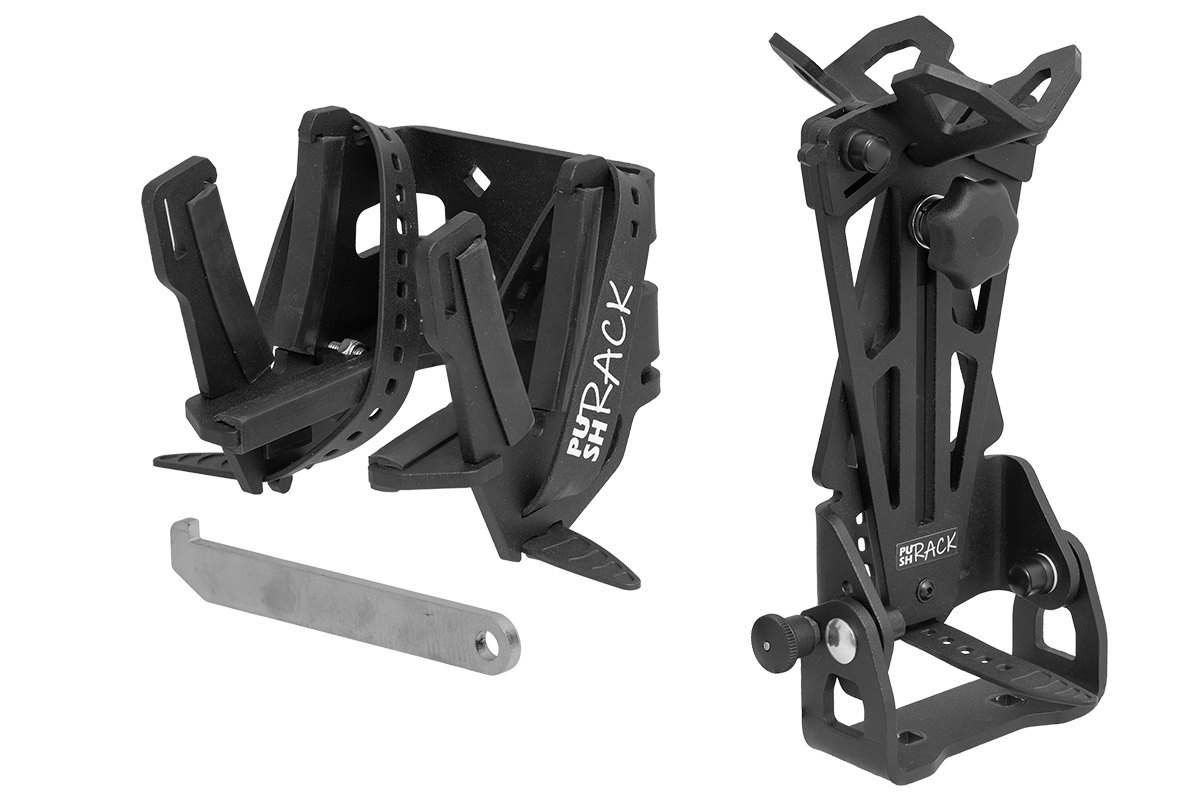

The V3 version of the PUSHrack bike rack

Want to mount your bike on your camper safely, securely, and—above all—effortlessly? Then the PUSHrack V3 bike rack from PUSH components is perfect for you.

In this post, we’ll walk you through the entire installation process: from what’s included in the package to the differences between the models, plus accessories, fine-tuning, and theft protection.

👉 Tip: You can also watch the video at the same time—it’ll make the installation even easier.

00:00

PUSHrack Bike Rack V3

The PUSHrack V3 is the latest generation of our modular bike rack system for campervans.

Developed based on thousands of kilometers of real-world use and direct community feedback, the V3 offers:

• even greater stability thanks to an enlarged tire contact area and integrated stem guide
• improved compatibility with virtually all Click-Fix mounts and e-bike displays
• even easier handling thanks to the tire holder’s slide bearings

00:12

Scope of Delivery V3 Standard

Included in the delivery:

1x Handlebar mount (suitable for the selected model)
2 x Longer screws (only for the DH version)
1x Locking bolt (suitable for the selected model)
1x Tire holder
1x Screw set (suitable for the selected rail type)
1x Safety rope (black sheath)
1x Instruction manual
1 x Velcro cable ties (only with V2)
You will receive a free red PUSHrack warning flag with every order!

Mounting rails are not included in the scope of delivery.

ORDER L-TRACK SET

INSTRUCTION MANUAL

BACK TO DESCRIPTION

00:51

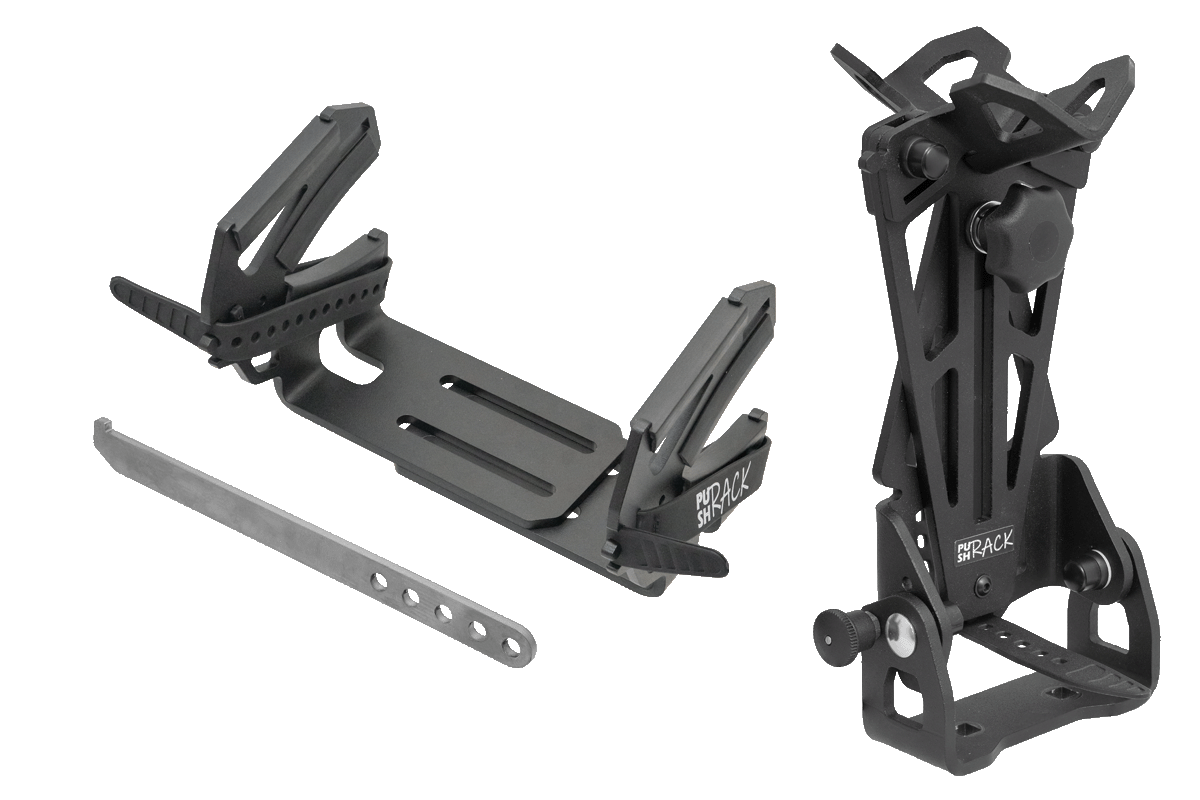

Scope of Delivery V3 DH

The DH model differs only in its width-adjustable handlebar mount—the tire mount is the same.

• The DH handlebar mount consists of two parts and is therefore width-adjustable.
• Both the screws and the locking bar are longer than those on the standard mount.
• We include two extra screws in case you want to install the Plus Arm for added stability.

01:34

Difference between the V3 Standard and the V3 DH

The difference lies in their design for different types of bikes:

• V3 Standard: perfect for MTBs, gravel bikes, road bikes, e-bikes, and kids’ bikes
• V3 DH: optimized for downhill bikes with a double-bracket fork that extends all the way to the handlebars and Shimano displays that protrude outward and cannot be rotated
Both systems remain fully compatible within the PUSHrack ecosystem.
The DH mount is the exception—in 99% of cases, the standard mount will fit! If your bike doesn’t fit the standard mount, feel free to send us an email.

PUSHrack V3 handlebar mount with locking latch for bike rack on airline rails

PUSHrack special handlebar mount with wide holder, locking bar, and tools – suitable for e-bikes with wide displays and downhill bikes

02:05

Gravel & Pannier Rack Adapter

With the right adapters, your PUSHrack becomes even more versatile. Simply remove the tire holder attachment, attach the adapter, and your bike will fit right onto the PUSHrack.

• Adapter Gravel: the extension for more clearance from the vehicle
– This keeps the saddle settings on your gravel bike unchanged.
– And you can transport kids’ bikes.
• Adapter Pannier Rack: perfect for bikes with a permanently mounted luggage rack

This way, you can transport virtually any bike with ease.

Manual Adapter Gravel

Manual Adapter Pannier Rack

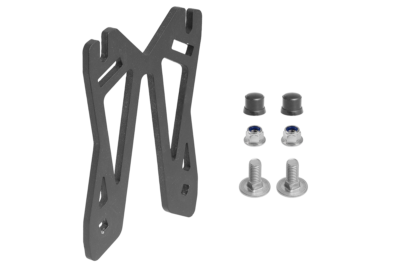

PUSHrack V3 gravel adapter for gravel bike and road bike transport on camper van

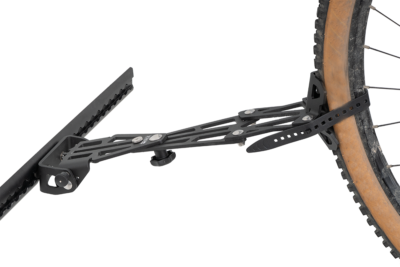

Gravel adapter mounted on airline rail and secured to gravel bike tire on PUSHrack V3 rear door rack

PUSHrack luggage rack adapter for transporting bikes with fixed rear carrier on camper van rear door bike rack

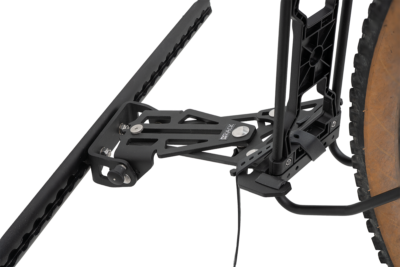

PUSHrack luggage rack adapter with mounted bicycle with rear carrier on airline rail

02:23

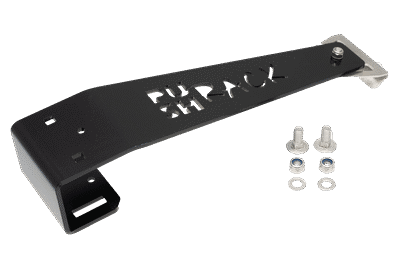

PUSHrack Plus Arm

The Plus Arm provides additional clearance and stability relative to the vehicle. A small upgrade with a big impact on everyday usability.

• The Plus Arm is necessary for camper vans with protruding windows.
• For e-bikes weighing over 20 kg, it significantly improves stability, though it is not strictly necessary. Please note that this does not increase the maximum bike weight per mount of 25 kg.
• For older or potentially poorly adhered Thule/Fiamma rails, the Plus Arm can provide a significant increase in stability and thus also safety.
• For bikes with heavily curved handlebars (up to approx. 70 mm rise), the Plus Arm can create enough space to mount such bikes as well.

Manual Plus Arm

02:38

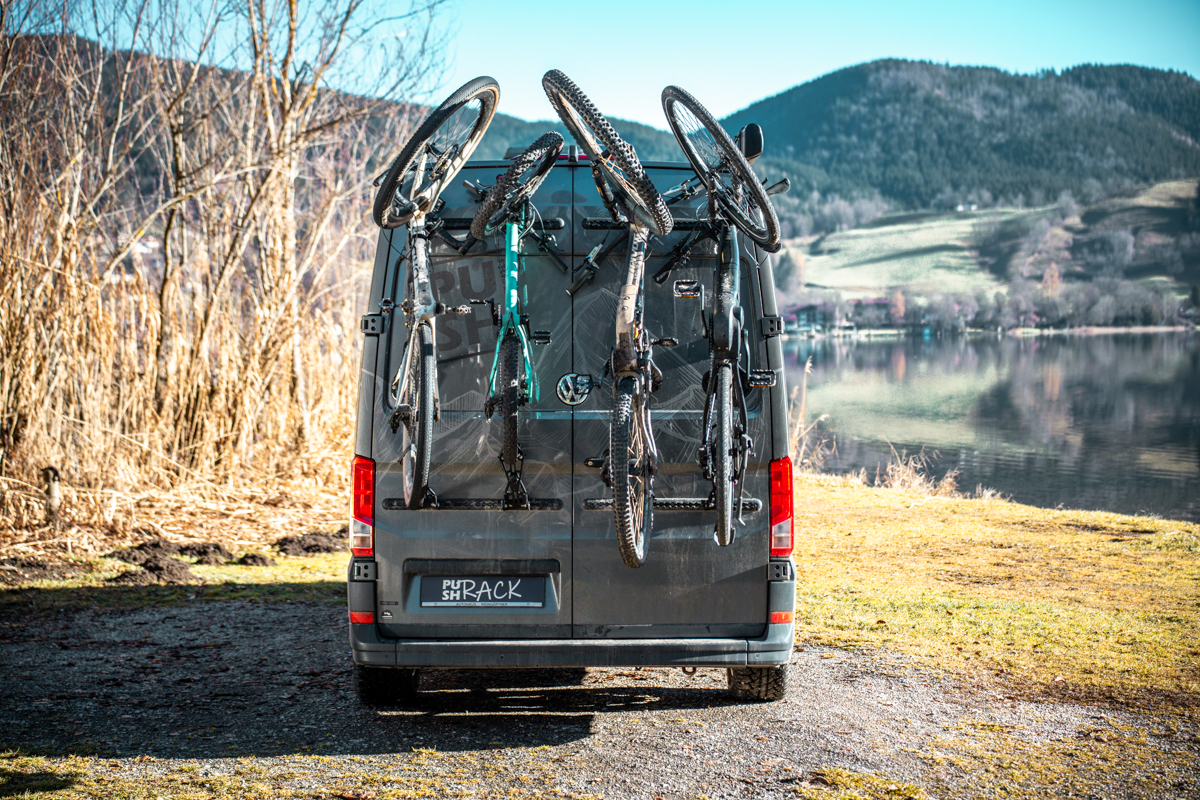

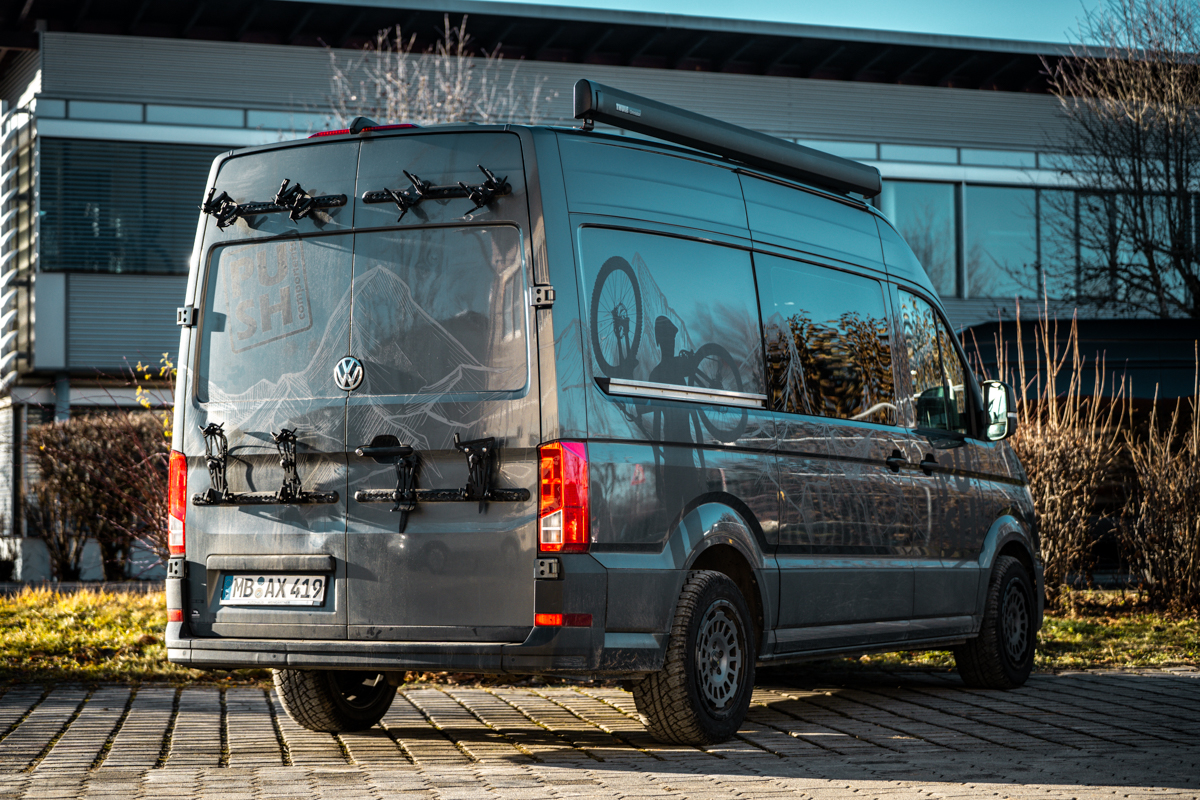

Installation V3 Standard

The V3 Standard is designed to be easy to install:

1. Position the bicycles to be transported
2. Install the extension arm if necessary
3. Secure the handlebar and tire holders to the rails using the fittings
4. Perform fine adjustments

Thanks to its well-thought-out design, everything is quickly installed and securely fastened.

Tips & Tricks

When transporting two bicycles, there should be approximately 30–40 cm of space between the two handlebar mounts.
Fiat Ducato, Citroën Jumper, and similar models: The handlebars must not extend beyond the door hinge. Therefore, the handlebar mount must not be installed on the outer edge of the airline rail.
Handlebar holders and tire holders must be mounted in a vertical line. To do this, count the holes on the airline rails starting from the center or measure from the center.

Manual V3

15:25

Theft protection

The built-in theft protection—a stainless steel locking bar—lets you secure each bike individually. Combined with an optional security lock, you can securely fasten your bikes to the PUSHrack bike rack.

This keeps your setup well-secured even when you’re on the go—whether at a campground or during a stop at a rest area.
