PUSHrack Plus Arm

Variant Guide: PUSHrack Plus Arm

Length x	Suitable Variant
225 - 275 mm	L250
275 - 325 mm	L300
325 - 375 mm	L350
525 - 575 mm	L550

Length

Clear

We added you to this product's waitlist and we'll send you an email when the product is available.

Leave Waitlist

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

SKU: N/A

Description

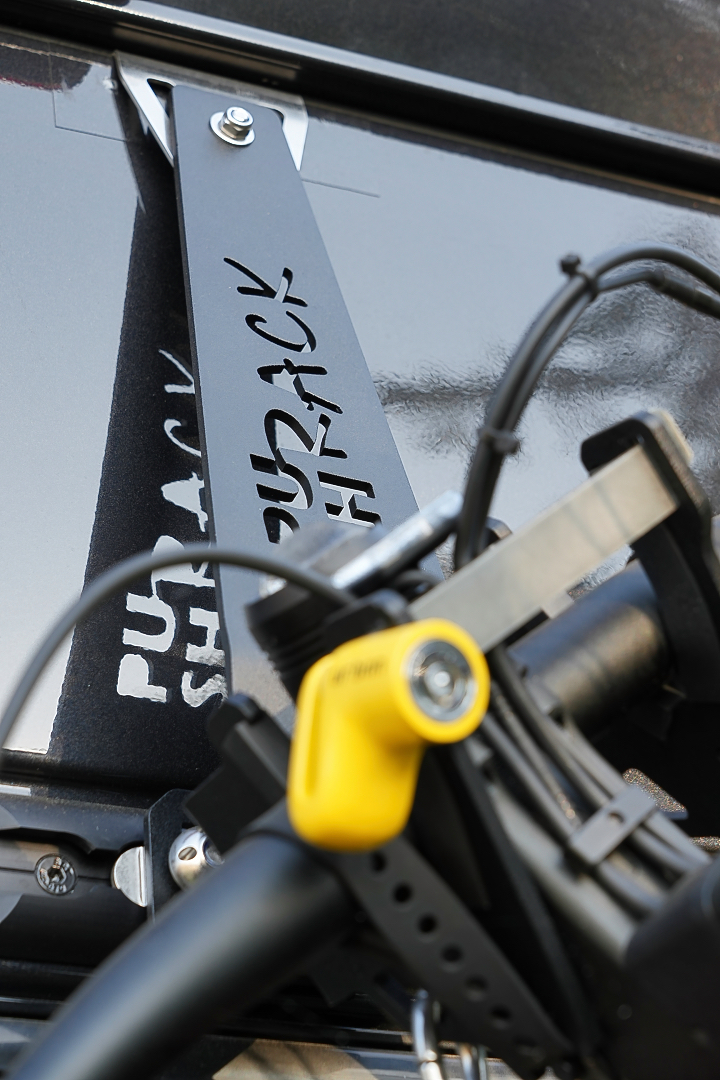

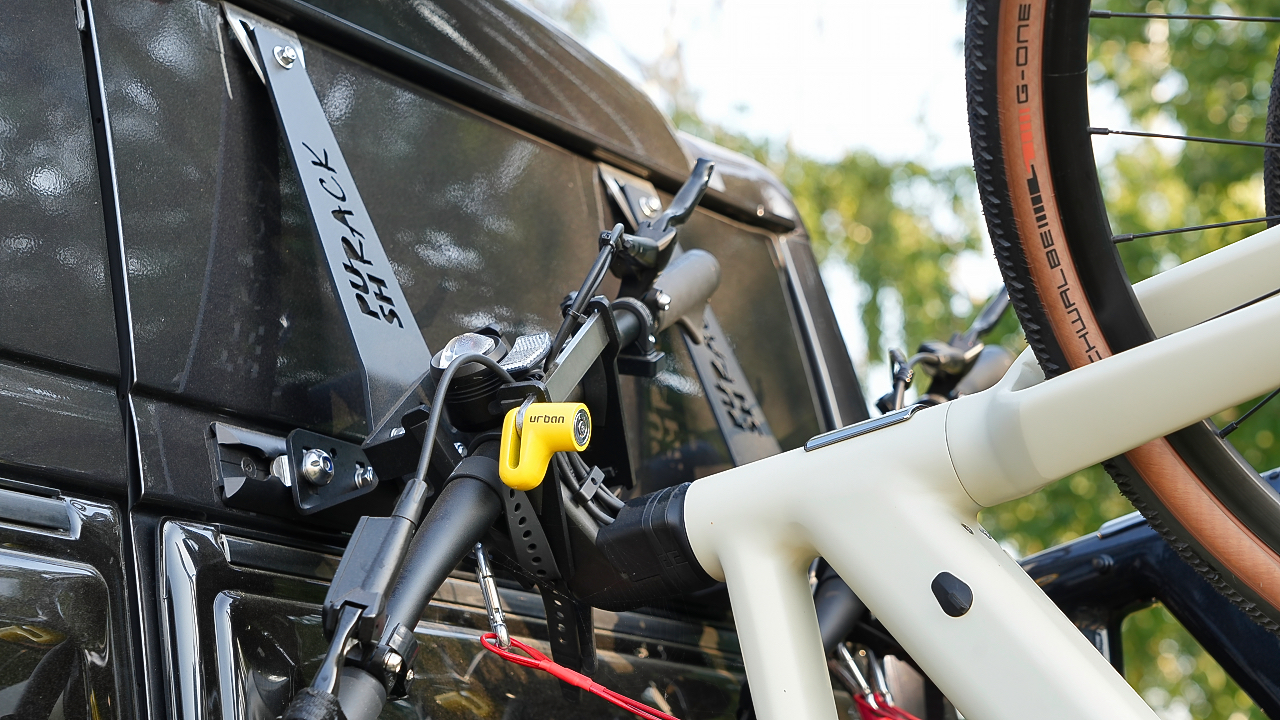

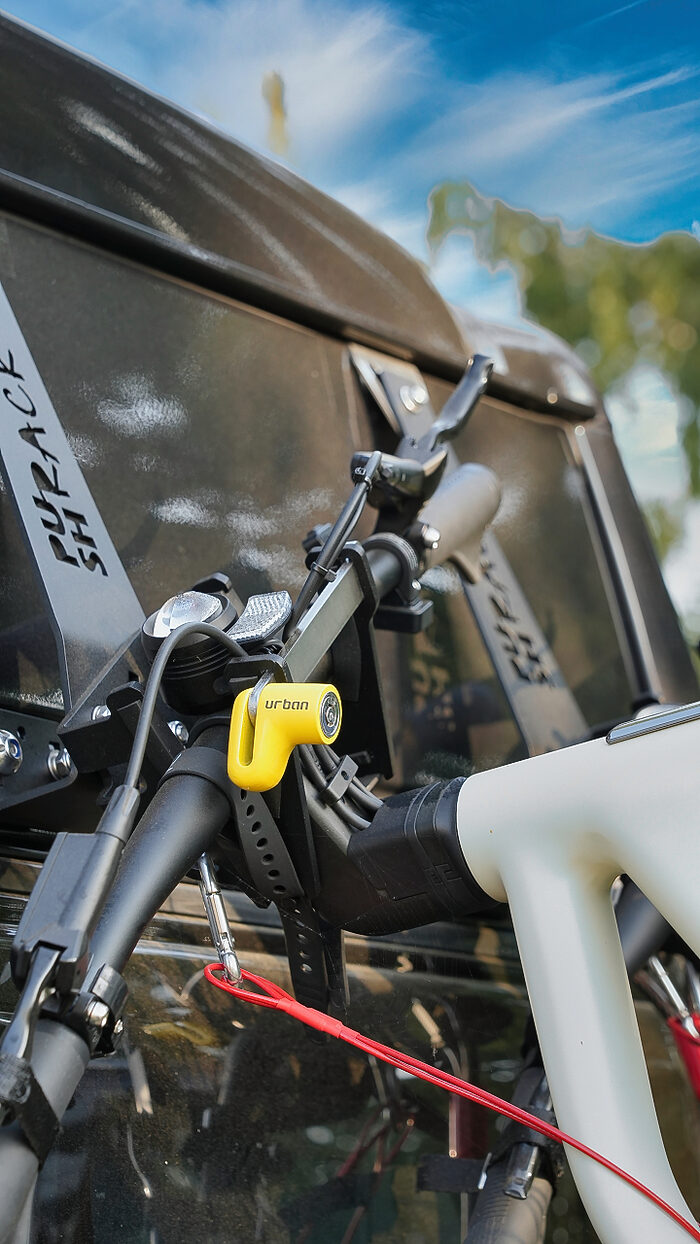

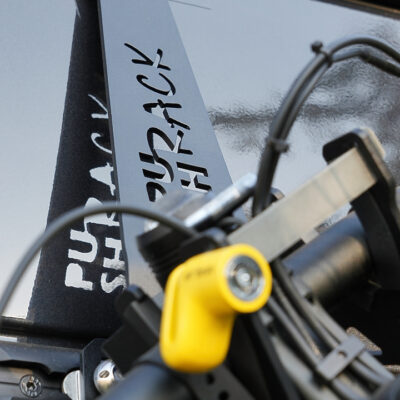

PUSHrack Plus Arm

YOUR BENEFITS

The PUSHrack Plus Arm was developed especially for campervans with attached or surface mounted windows. These include, for example, many Fiat Ducato and Citröen Jumper models. The aim here is to prevent unwanted contact between the handlebar and the window and subsequently unwanted scratched.

ORDER NOW

A PLUS IN DISTANCE

With the PUSHrack Plus Arm, you gain about 6-7 cm of extra clearance from the vehicle. This means significantly more space between the handlebars and the windows. So you don’t have to worry about unwanted contact or potential scratches.

A PLUS IN STABILITY

The PUSHrack Plus Arm distributes the weight of the mounted bikes evenly across the vehicle door. This significantly improves the stability of Thule/Fiamma rails, which are often not securely attached.
As a result, twisting of the rail caused by the weight of the bike has been completely eliminated.

WHO IS THE PLUS ARM IS SUITABLE FOR?

The Plus Arm is required for panel vans with surface-mounted (protruding) windows.
For e-bikes over 20kg, it significantly improves stability, but is not absolutely necessary. Please note that this does not increase the maximum bike weight of 25kg per holder.
With older or possibly poorly bonded Thule/Fiamma rails, the Plus Arm can provide a significant increase in stability and therefore safety.
For bikes with strongly curved handlebars (up to approx. 70mm rise), the Plus Arm can create enough space to mount such bikes as well.

ORDER NOW

The right setup starts here – a few tips to guide your choice

ORDER OPTIONS

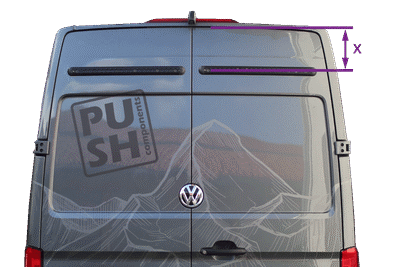

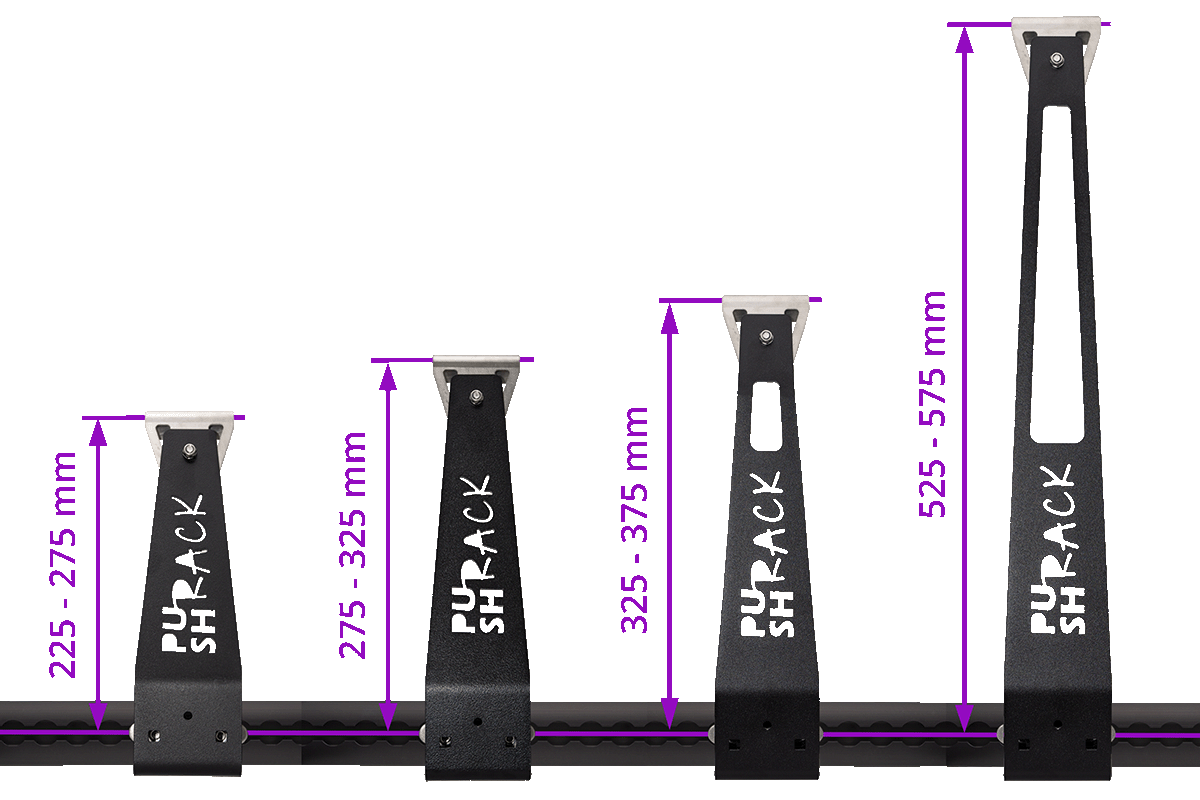

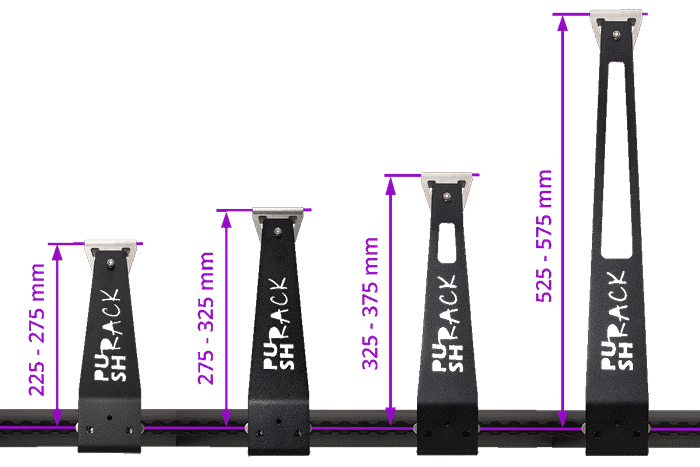

The PUSHrack Plus arm is available in 4 different lengths. The length you need depends on the distance between the top rail and the top edge of the door. The silver clamp has 3 mounting positions, so the length is specified as a range (from – to).

L250: 225 - 275 mm (Mostly suitable for VW Crafter)
L300: 275 - 325 mm (Mostly suitable for Fiat Ducato / Citroën Jumper / Peugeot Boxer in height H2 (height 2.5 m))

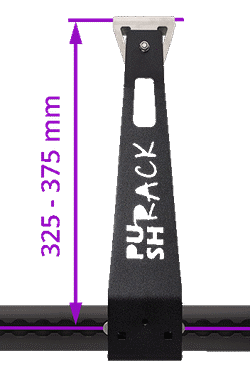

L350: 325 - 375 mm (Mostly suitable for Mercedes Sprinter)
L550: 525 - 575 mm (Mostly suitable for Fiat Ducato / Citroën Jumper / Peugeot Boxer in height H3 (height 2.7 m))

ORDER NOW

INSTALLATION NOTE

The PUSHrack Plus Arm is mounted between the rail and the bike holder.
It can be retrofitted and removed without leaving any residue.
Except for the clamp on the door edge, the Plus Arm is made of aluminum and powder-coated in black.
The bracket on the edge of the door is made of stainless steel.

Images of silver arms are prototypes and do not correspond to the series.

SUITABLE VEHICLES

Vans from a height of 2.25 meters are perfectly suitable, but motorhomes, off-road vehicles and caravans are also possible.

Citröen Jumper
Fiat Ducato
Ford Transit
MAN TGE
Mercedes Sprinter
Nissan Interstar

Nissan NV400
Opel Movano
Peugeot Boxer
Ram ProMaster
Renault Master
VW Crafter

Ducato/Jumper H1, Sprinter H1, Crafter H2, VW California, Opel Vivaro, Renault Traffic

SMALLER VEHICLES?

For buses with a height of less than 2.25m, it is generally not possible to install the upper rail. We are currently working on a solution to make PUSHrack available for as many buses as possible in the future. As soon as we have a finished product, we will announce it here.

Do you have a different vehicle? Please get in touch with us!

QUESTIONS?

Not sure which product is right for you? Just write us and we'll be happy to help!

CONTACT

Manufacturer:

PUSH components
Schindelka & Dann GbR
Office address:
Maxlrainer-Str. 10
83714 Miesbach
Germany

VW Crafter camper van with PUSHrack Bike Rack, family having breakfast outdoors in a mountain landscape

Camper van with open rear doors and two mountain bikes mounted on the PUSHrack bike rack, child playing behind the van in an outdoor setting

VW Crafter camper van with two mountain bikes mounted on the PUSHrack bike rack, parked in a desert-like landscape with wide open views

Additional information

Weight	N/A
Dimensions	N/A
Material	Aluminium, powder-coated
Care Instruction	For winter use, we recommend regular cleaning of road salt
Origin	Germany
Brand	PUSH components
Color	Black

Scope of delivery

Scope of Delivery:

1x arm, in selected length
1x clamp
1x sticker (transparent) as paint protection
1x screw set
1x instruction manual
