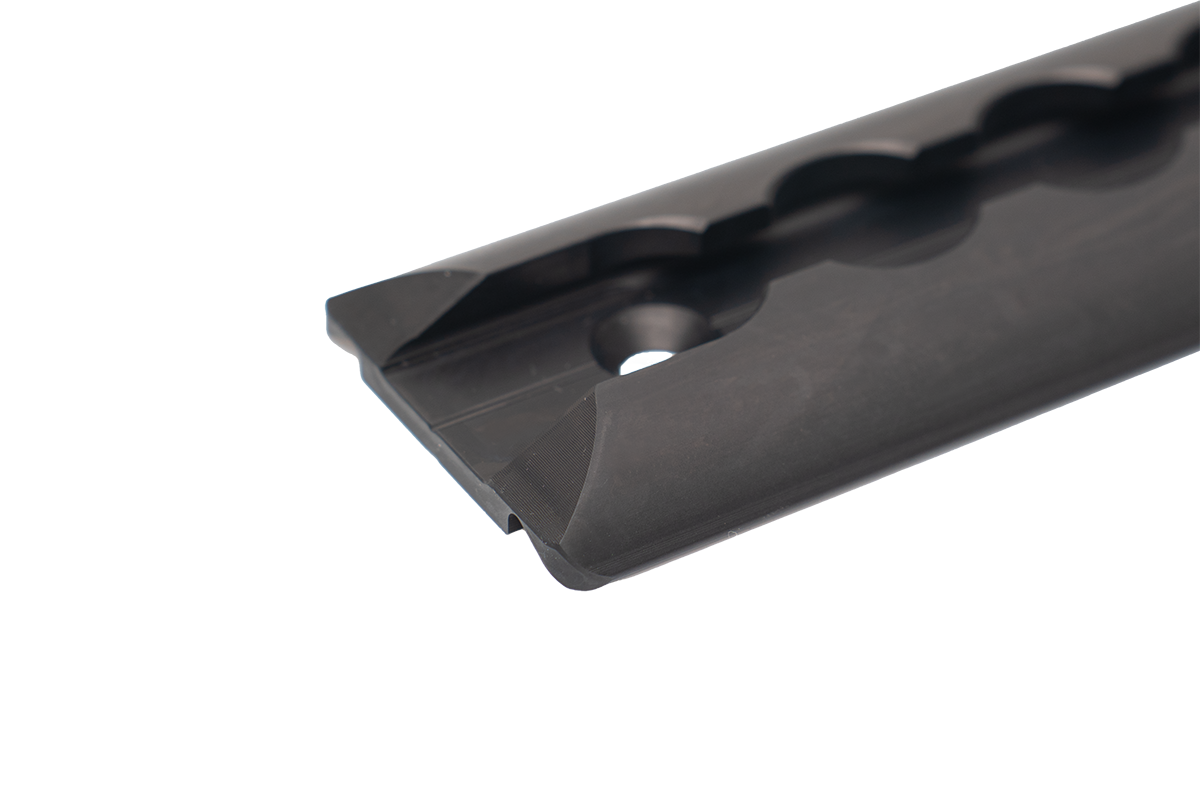

    Detail of the PUSHrack Airline Rail/L-Track with significantly flattened end and round hole profile
    Close-up of a PUSHrack Airline Rail/L-Tracks with flattened ends and round hole profile
    Homepage » SHOP » PUSHrack L-Track Set / Airline Rails Set

    PUSHrack L-Track Set / Airline Rails Set

    Basis for all PUSHrack products

    200,00 €

    (5 customer reviews)
    Add to wishlist

    Variant Guide: PUSHrack L-Track Set

    Vehicle Year Vehicle Height Suitable Variant
    Citröen Jumper all models H2 (2,53m) & H3 (2,76m) Vehicle Type 2
    Fiat Ducato all models H2 (2,53m) & H3 (2,76m) Vehicle Type 2
    Ford Transit from 2014 H3 (2,78m) Vehicle Type 2
    MAN TGE all models H3 (2,59m) & H4 (2,79m) Vehicle Type 1
    Mercedes Sprinter from 2006 H2 (2,62m) & H3 (2,97m) Vehicle Type 1
    Nissan NV400 2010 - 2021 H2 (2,50m) & H3 (2,75m) Vehicle Type 1
    Nissan Interstar from 2021 H2 (2,50m) & H3 (2,75m) Vehicle Type 1
    Opel Movano B 2010 - 2021 H2 (2,50m) & H3 (2,75m) Vehicle Type 1
    Opel Movano C from 2021 H2 (2,53m) & H3 (2,76m) Vehicle Type 2
    Peugeot Boxer all models H2 (2,53m) & H3 (2,76m) Vehicle Type 2
    RAM ProMaster all models H2 (2,53m) & H3 (2,76m) Vehicle Type 2
    Renault Master all models H2 (2,50m) & H3 (2,75m) Vehicle Type 1
    VW Crafter all models H3 (2,59m) & H4 (2,79m) Vehicle Type 1
    Ducato/Jumper H1, Sprinter H1, Crafter H2, VW California, Opel Vivaro, Renault Traffic

    Smaller Buses?

    For buses under a height of 2.25 m, it is generally not possible to fit the top rail. We are working on a solution to make PUSHrack possible for as many buses as possible in the future. As soon as we have a finished product, we will announce it here.

    Do you have a different vehicle? Please get in touch with us

    Variant Guide

    We added you to this product's waitlist and we'll send you an email when the product is available.

    Leave Waitlist

    This product is currently sold out.

    No worries! Enter your email, and we'll let you know as soon as it's back in stock.

    SKU: N/A
    Description

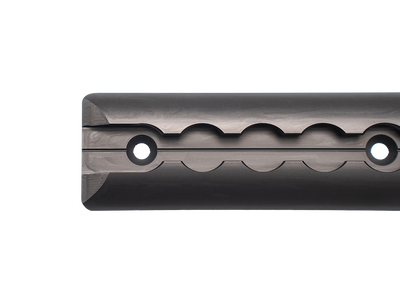

    Close-up of a PUSHrack Airline Rail/L-Tracks with flattened ends and round hole profile
    PUSHrack L-Track/ Airline Rails

    YOUR BENEFITS

    • High-quality L-Tracks, up to 2500kg load
    • Reinforcement plates for the inside of the vehicle, sheet metal
    • Flange nuts
    • Anodized aluminium and stainless steel components ensure protection from rain, snow, road salt and seawater
    • Basis for all our racks: whether for cycling or winter sports
    • Compatible with all common airline rail accessories
    • Developed and manufactured entirely in Germany
    ORDER NOW
    INSTRUCTION MANUAL
    The right setup starts here – a few tips to guide your choice

    ORDER OPTIONS

    Vehicle type 1:

    Rail top 60cm / bottom 70cm

    • MAN TGE – all models – H3 (2,59m) & H4 (2,79m)
    • Mercedes Sprinter - from 2006 - H2 (2,62 m) & H3 (2,97 m)
    • Nissan Interstar - 2010 to 2021 - H2 (2,50m) & H3 (2,75m)
    • Nissan NV400 B - 2010 to 2021 - H2 (2,50m) & H3 (2,75m)
    • Opel Movano B - 2010 to 2021 - H2 (2,50m) & H3 (2,75m)
    • Renault Master - from 2010 - H2 (2,50m) & H3 (2,75m)
    • VW Crafter – all models – H3 (2,59m) & H4 (2,79m)

    Vehicle type 2:

    Rail top & bottom 70cm

    • Citröen Jumper – all models – H2 (2,53m) & H3 (2,76m)
    • Fiat Ducato – all models – H2 (2,53m) & H3 (2,76m)
    • Ford Transit - from 2014 - H2 & H3 (2,78m)
      The sheet metal on the inside of the door must be cut out for installation.
      Please have a look here: mounting video
    • Opel Movano C – from 2021 – H2 (2,53m) & H3 (2,76m)
    • Peugeot Boxer – all models – H2 (2,53m) & H3 (2,76m)
    • RAM ProMaster - all models - H2 (2,53m) & H3 (2,76m)
    Ducato/Jumper H1, Sprinter H1, Crafter H2, VW California, Opel Vivaro, Renault Traffic

    SMALLER VEHICLES?

    For buses with a height of less than 2.25m, it is generally not possible to install the upper rail. We are currently working on a solution to make PUSHrack available for as many buses as possible in the future. As soon as we have a finished product, we will announce it here.

    Do you have a different vehicle? Please get in touch with us!

    REQUIREMENTS

    The PUSHrack is very flexible, but there are a few things to keep in mind when installing your L-Track Set / Airline Rails Set.
    INSTRUCTION MANUAL
    INSTALLATION

    Assembly Requirements

    • The rails must be fitted horizontally to one or both doors.
    • With a distance of 100-130cm, adult bikes of all sizes fit on your PUSHrack.
    • To prevent the bikes from rolling on the road later, the top rail should be mounted at least 150cm above the bumper.

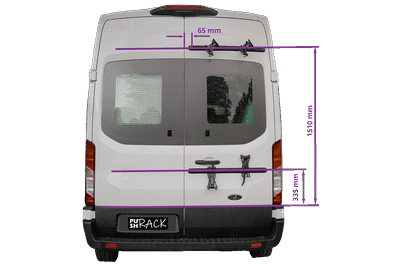

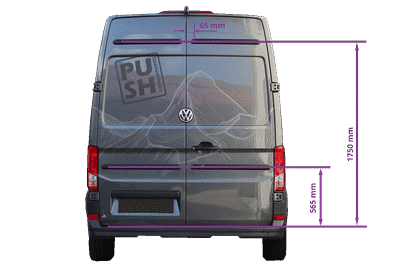

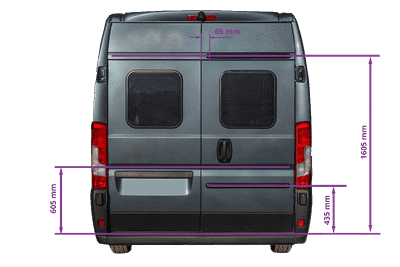

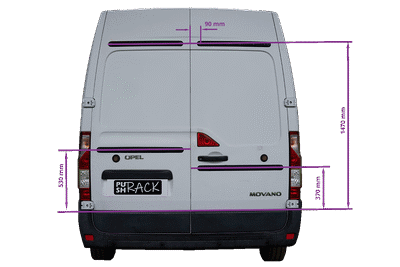

    Examples

    Here you can see examples of how we have fitted the rails to various vans.

    Have you installed other rails on your vehicle or are you unsure? Please get in touch with us!

    INSTALLATION PARTNERS

    WOULD YOU LIKE SOME HELP WITH THE INSTALLATION?

    TO OUR INSTALLATION PARTNERS
    INSTALLATION PARTNERS

    WOULD YOU LIKE SOME HELP WITH THE INSTALLATION?

    TO OUR INSTALLATION PARTNERS

    The PUSHrack system

    PUSHrack rear rack with bicycle, cross-country skis, and e-scooter on a VW Crafter – modular airline rail rack for campers and vans from PUSH components
    PUSHrack Ski Rack with Z-adapters and fittings for mounting on airline rails

    PUSHrack Ski Rack

    90,00 €
    Delivery Time: available immediately
    You need one rack per one pair of skis
    Select options
    This picture shows the product PUSHrack bottle opener called BLOP, with which you can not only open your bottle but also hang a bin bag on the hook provided on the bottle opener.

    PUSHrack Bottle Opener BLOP

    Price range: 29,00 € through 39,00 €
    Delivery Time: available immediately
    A bottle opener with integrated hooks for garbage bags
    Select options
    PUSHrack L-Track Set / Airline Rails Set

    PUSHrack L-Track Set / Airline Rails Set

    200,00 €
    Basis for all PUSHrack products
    Select options
    PUSHrack bike rack by PUSH components – premium rear rack for campers to securely mount your bike

    PUSHrack Bike Rack-V2

    Price range: 165,00 € through 190,00 €
    You need one rack per bike
    Read more
    PUSHrack handlebar mount with locking bar and tools – compatible with 90% of all bikes

    PUSHrack Handlebar Mount-V2

    Price range: 80,00 € through 105,00 €
    Delivery Time: available immediately
    You need one mount per bike
    Read more
    PUSHrack pole holder mounted behind the ski rack or cross-country ski rack on campervans

    PUSHrack Pole Mount

    25,00 €
    Delivery Time: available immediately
    One mount holds up to 2 pairs of poles
    Add to cart
    PUSHrack e-scooter carrier with two straps and airline rail fittings for mounting on camper vans

    PUSHrack E-Scooter Rack

    250,00 €
    Delivery Time: available immediately
    You need one rack per e-scooter
    Select options
    PUSHrack Tire Holder V2

    PUSHrack Tire Holder V2

    80,00 €
    Delivery Time: available immediately
    You need one tire holder per bike
    Read more
    PUSHrack Security Lock

    PUSHrack Security Lock

    Price range: 17,00 € through 55,00 €
    Delivery Time: available immediately
    Reliable theft protection for equipment on the PUSHrack
    Select options
    PUSHrack cross-country ski rack with airline rail fittings – modular mounting solution for campervans

    PUSHrack Nordic Rack

    90,00 €
    Delivery Time: available immediately
    You need one rack per pair of skis
    Select options
    PUSHrack Strap

    PUSHrack Strap

    10,00 €
    Delivery Time: available immediately
    Versatile packing strap
    Select options
    PUSHrack box for the Room Extender with mounting screws and keys for secure installation on a campervan

    PUSHrack Box

    135,00 €
    Delivery Time: available immediately
    Flexible transport box for your PUSHrack Room Extender
    Add to cart

    QUESTIONS?

    Not sure which product is right for you? Just write us and we'll be happy to help!
    CONTACT

    Manufacturer:

    PUSH components
    Schindelka & Dann GbR
    Office address:
    Maxlrainer-Str. 10
    83714 Miesbach
    Germany

    Additional information
    Weight1,8 kg
    MaterialAluminium, anodized
    ColorBlack
    Care InstructionFor winter use, we recommend regular cleaning of road salt
    OriginGermany
    BrandPUSH components

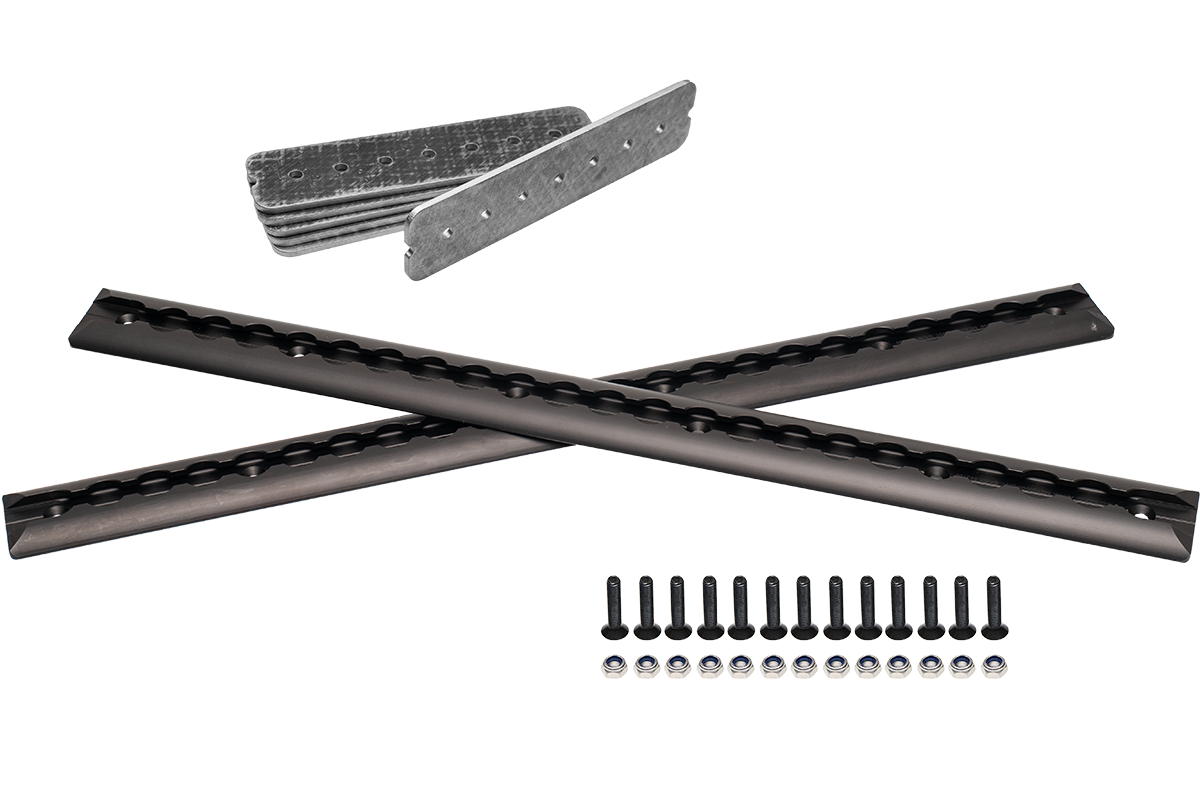

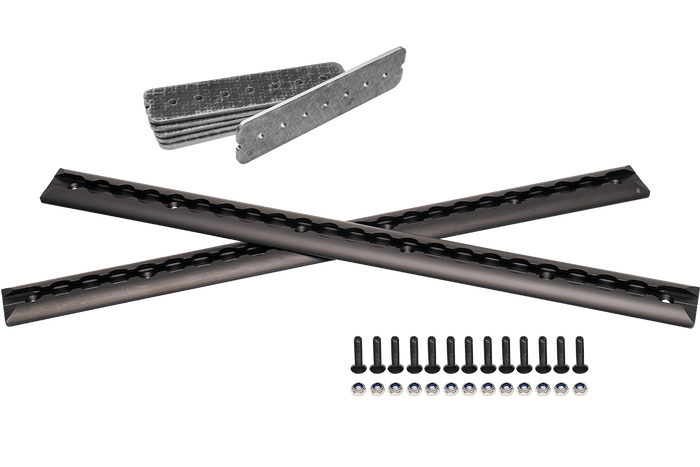

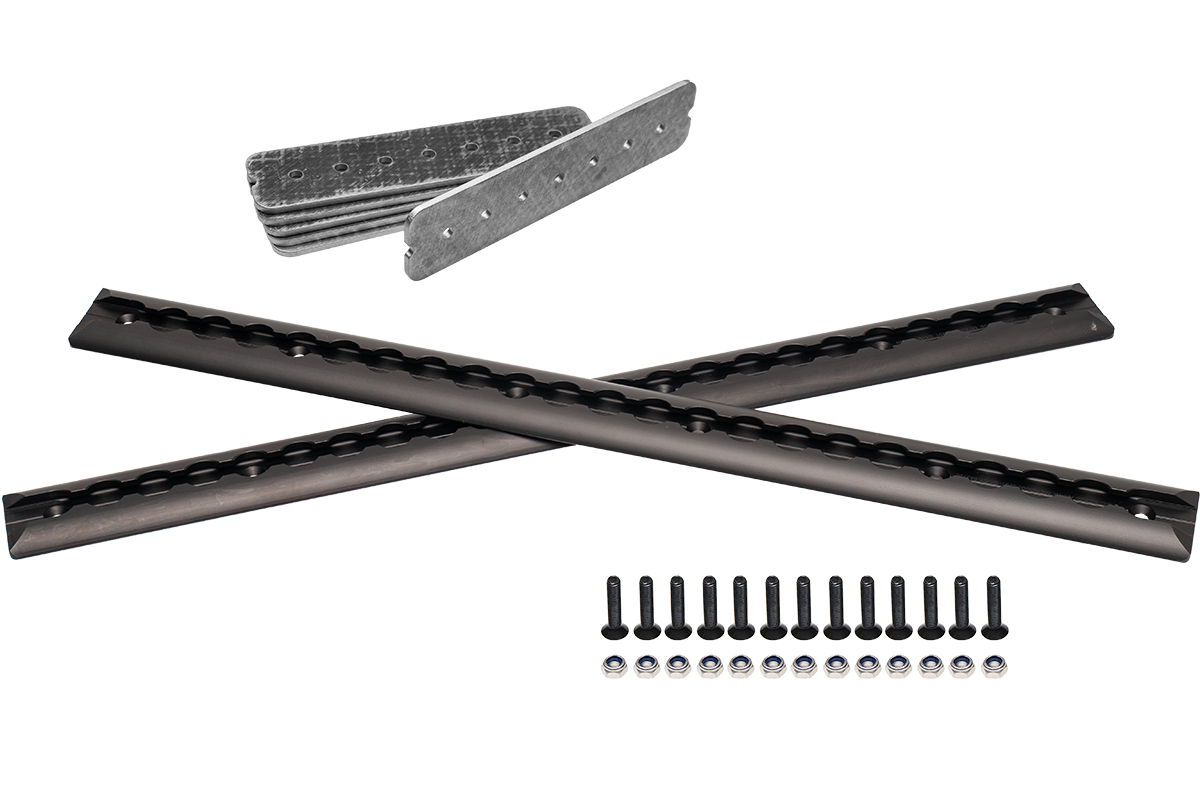

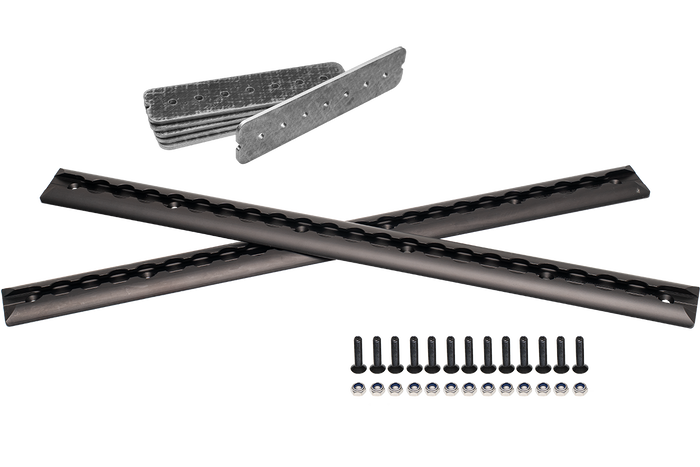

    Scope of delivery

    Scope of Delivery:

    • 2 x L-Track semicircular black anodised & pre-drilled (length depending on vehicle type)
    • 6 x pre-drilled aluminium reinforcement plates
    • 13 x countersunk screws black stainless steel
    • 13 x stainless steel self-locking flange nuts
    • 1 x user manual
    • Adhesive is not included in the scope of delivery. We recommend Sikaflex 522
    ORDER L-TRACK SET
    Instruction Manual
    Back to description
    Videos
    Fiat Ducato - Citröen Jumper

    Installation on Flat Doors

    Mercedes Sprinter - Ford Transit - VW Crafter

    Installation on Curved Doors

    Opel Movano - Renault Master

    Add-on Video

    YOUTUBE PLAYLIST
    BACK TO DESCRIPTION
    Payment / Delivery

    Payment Methods

    PayPal

    icon-ecoomerce-credit-card-yellow

    Creditcard

    Prepayment

    Apple Pay

    Google Pay

    Shipping Cost & Delivery Time

    Free delivery in Germany for orders over 100€! This offer applies exclusively to orders from end consumers.

    Please note that for orders paid directly via PayPal or Apple Pay, it is not possible to add items to your order after it has been placed.

    globe in hand
    We try to ship each order in one package if possible.
    The item with the longest delivery time therefore determines the delivery time for the entire order.
    Small products
    Country Cost Tracking Delivery time
    Germany 3-5 € not included 2-3 working days
    EU 7 € included 4-7 working days
    Non EU 6-10 € included 3-4 weeks
    Tall products
    Country Cost Tracking Delivery time
    Germany 8,30 - 20,00 € included 2-3 working days
    EU 8,50 - 30,00 € included 3-7 working days
    Non EU 20,00 - 50,00 € included 3-4 weeks

    Shipping costs vary depending on parcel size and country. The exact shipping costs are displayed during checkout before finalising the order.

    For vehicle parts exported from the EU, VAT refunds are excluded by law. Since bike racks are legally considered vehicle parts, we are unfortunately unable to offer VAT refunds to our Swiss customers.

    For orders to third countries with a goods value of over €1000, delivery times may be extended due to the required customs declaration. To avoid this, we recommend splitting the order into two separate shipments.

    Reviews (5)

    5 reviews for PUSHrack L-Track Set / Airline Rails Set

    1. Andreas Walleczek –

      We love the Pushrack. We use it on a Ducato and a Ford Transit, and the videos made installation a breeze.
      We’ve already covered a few thousand kilometers and everything is holding up perfectly 🙂

      0
      0

    2. Chris Einsele –

      Super product! Installation was super easy with the help of the video. Of course, depending on how you remove it, you have more or less effort to get the cover off, but that has nothing to do with the product. Perhaps a set including Dekasil would also be useful for some people.

      0
      0

    3. Marco (store manager) –

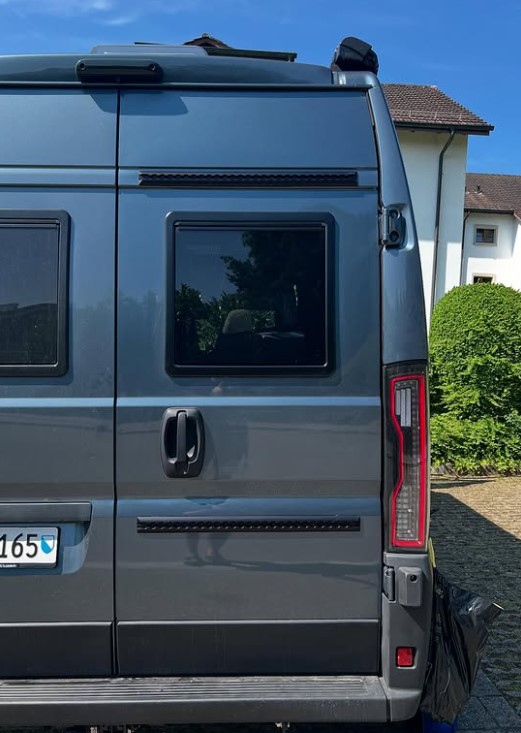

      PUSHrack L-tracks are fitted. Installation went quite well, thanks to the good installation video on https://pushcomponents.com
      The e-mail process before the order was also really cool. Something will be on it soon. Marco

      0
      0

    4. Emmi von Platen (verified owner) –

      Great rails, and easy to install while watching the video. Nice finish!

      0
      0

    5. Daniel –

      Fit perfectly for my Ducato offcut (Opel Morano C). The holes and the plates to hold them in place make installation child’s play. Be sure to watch the YouTube video when fitting, then you can’t go wrong :)!

      It’s also great that it’s an airline rail and can theoretically also be fitted with other attachment points.

      0
      0
    Add a review

    Your email address will not be published. Required fields are marked *

    You have to be logged in to be able to add photos to your review.


    You might also like ...

    Sale
    SalePUSHrack luggage rack adapter for transporting bikes with fixed rear carrier on camper van rear door bike rack
    PUSHrack luggage rack adapter mounted on airline rail at camper van rear door bike rack
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Adapter Pannier Rack

    Designed for transporting bikes with pannier racks

    Price range: 16,00 € through 25,00 €

    PUSHrack snowboard Rack set with four mounts, four Z-adapters, hardware fittings, and two short and two long straps
    Close-up of a snowboard secured to the PUSHrack Snowboard Rack with a focus on the strap
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Snowboard Rack

    You need one rack for up to two snowboards, two kitesurf boards or one wakeboard.
    You can transport windsurf boards, short SUPs, foils, and longer boards using the PUSHrack Surfboard Rack.

    165,00 €

    PUSHrack replacement rubber profiles for V3 handlebar holder bike rack set of 6
    Add to cart
    Quick view
    Add to wishlist

    PUSHrack Rubber Profile Bike Rack

    Spare part for the PUSHrack Bike Rack

    5,00 €

    Delivery Time: available immediately
    PUSHrack Ski Rack with Z-adapters and fittings for mounting on airline rails
    Outdoor enthusiast attaches bikes and skis to PUSH components' Pushrack on a camper van against a mountain backdrop.
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Ski Rack

    You need one rack per one pair of skis

    90,00 €

    Delivery Time: available immediately
    PUSHrack V3 handlebar mount with locking latch for bike rack on airline rails
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Handlebar Mount

    You need one mount per bike

    Price range: 80,00 € through 105,00 €

    Replacement strap for the PUSHrack e-scooter rack – securing strap for safe e-scooter fixation
    Rolled-up replacement strap for the PUSHrack e-scooter rack – neatly secured with a rubber band
    Add to cart
    Quick view
    Add to wishlist

    PUSHrack E-Scooter Rack Strap

    Spare part for the PUSHrack E-Scooter Rack

    25,00 €

    Delivery Time: available immediately
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Strap

    Versatile packing strap

    10,00 €

    Delivery Time: available immediately
    PUSHrack cross-country ski rack with airline rail fittings – modular mounting solution for campervans
    Campervan equipped with the PUSHrack ski carrier, carrying multiple pairs of skis and a snowboard – both with and without protective bags – securely mounted on the rear doors in a snowy winter landscape. The setup highlights the high capacity of the system to transport large amounts of winter sports gear.
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Nordic Rack

    You need one rack per pair of skis

    90,00 €

    Delivery Time: available immediately
    Close-up of a mountain bike on the PUSHrack bike rack with a yellow security lock on the handlebars
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view
    Add to wishlist

    PUSHrack Security Lock

    Reliable theft protection for equipment on the PUSHrack

    Price range: 17,00 € through 55,00 €

    Delivery Time: available immediately
    Add to cart
    Quick view
    Add to wishlist

    PUSHrack Flex Strap

    For securing small kids bikes

    20,00 €

    Delivery Time: available immediately
    PUSHrack V3 gravel adapter for gravel bike and road bike transport on camper van
    PUSHrack bike rack V3 attached to the rear of a campervan with a gravel bike and a children's bike
    Add to cart
    Quick view
    Add to wishlist

    PUSHrack Adapter Gravel

    For transporting gravel bikes or road bikes

    Caution: ONLY suitable for bike rack/tire holder V3!

    20,00 €

    Delivery Time: available immediately
    This image shows the PUSHRACK padlock with key from ARBUS.
    Dieses Bild zeigt, wie du mit den PUSHrack Produkten Lock point, steel cable and padlock dein Rad vor Diebstahl am Fahrradträger schützen kannst.
    Add to cart
    Quick view
    Add to wishlist

    PUSHrack Padlock

    Anti-theft device for your equipment

    20,00 €

    Delivery Time: available immediately
