PUSHrack Plus Arm

For vans with surface-mounted windows

Price range: 39,99 € through 44,99 €

Includes 19% VAT

plus shipping

Delivery Time: available immediately

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

Length

Clear

Add to wishlist

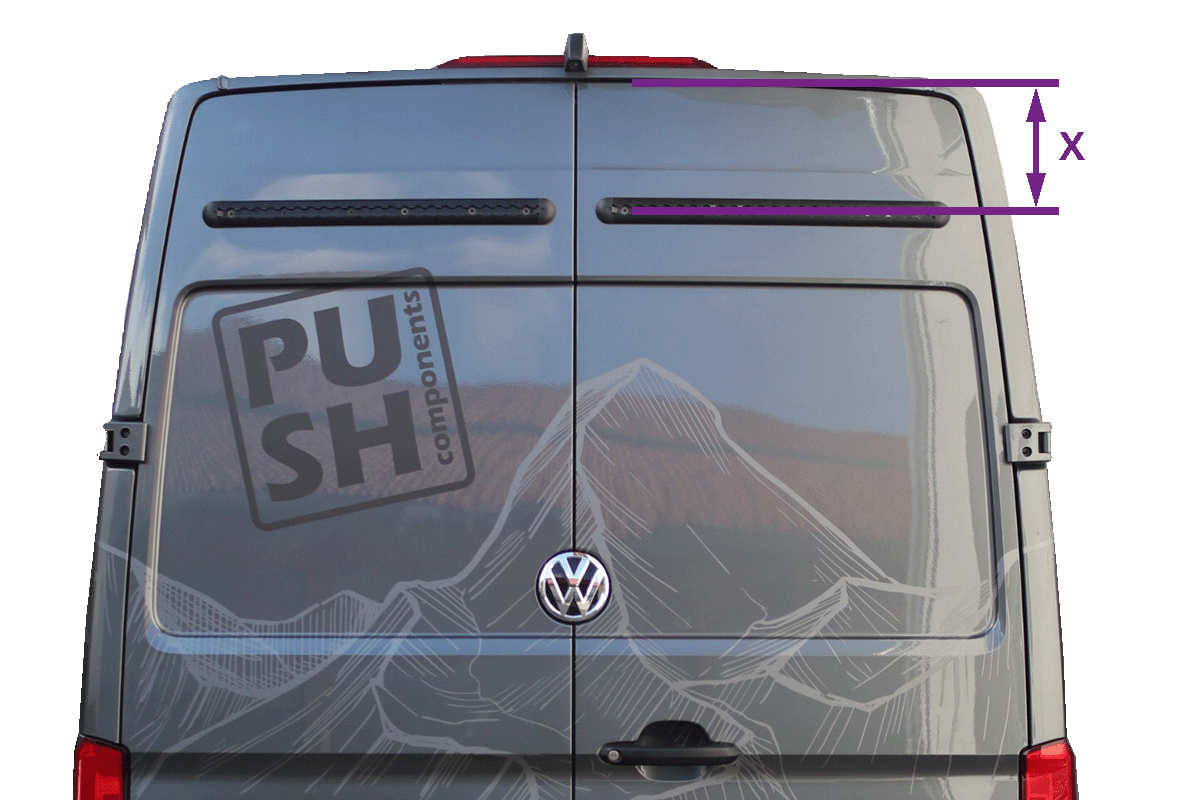

Variant Guide: PUSHrack Plus Arm

Length x	Suitable Variant
225 - 275 mm	L250
275 - 325 mm	L300
325 - 375 mm	L350
525 - 575 mm	L550

SKU: N/A Categories: Accessories, Bike Rack, Campervan Back Rack Tags: Bike, Bike Accessories, Bike Rack, Bike Transportation, Enduro, Mountainbike, Rear rack, Shuttle

Description

PUSHrack Plus Arm

Your Benefits

We have developed the Plus Arm especially for panel vans with attached windows. These include, for example, many Fiat Ducato and Citröen Jumper models. The aim here is to prevent unwanted contact between the handlebar and the window.

ORDER NOW

MORE INFO

A plus in distance:

6-7 cm more distance to the vehicle, which means significantly more space between the handlebars and windows. This means you don't have to worry about unwanted contact.

A plus in stability:

Supporting the top edge of the door completely eliminates any twisting of the rail due to the weight of the bike. This significantly improves the stability of C-rails, which are often not optimally bonded.

Who is the Plus Arm for?

The Plus Arm is required for panel vans with surface-mounted (protruding) windows.
For e-bikes over 20kg, it significantly improves stability, but is not absolutely necessary. Please note that this does not increase the maximum bike weight of 25kg per holder.
With older or possibly poorly bonded C-rails, the Plus Arm can provide a significant increase in stability and therefore safety.
For bikes with strongly curved handlebars (up to approx. 70mm rise), the Plus Arm can create enough space to mount such bikes as well.

Here are a few tips to make sure you order the right thing

Selection options for the order:

The Plus Arm is available in 4 different lengths. The length you need depends on the distance between the top rail and the top edge of the door. The silver clamp has 3 positions for mounting, so the length is given as a range (from – to).

L250: 225 - 275 mm (mostly suitable for VW Crafter)
L300: 275 - 325 mm (mostly suitable for Fiat Ducato / Citröen Jumper / Peugeot Boxer in height H2 (height 2.5 m))
L350: 325 - 375 mm (mostly suitable for Mercedes Sprinter)
L550: 525 - 575 mm (mostly suitable for Fiat Ducato / Citröen Jumper / Peugeot Boxer in height H3 (height 2.7 m))

ORDER NOW

Installation:

The Plus Arm is mounted between the rail and the bike holder, can be retrofitted and removed again without leaving any residue.

The Plus Arm is made of black powder-coated aluminium except for the clip on the door edge. The clip is made of stainless steel.
Pictures of silver arms are earlier prototypes and do not correspond to the series.

Questions?

Not sure which product is right for you? No problem, just write to us and we'll be happy to help.

CONTACT

Manufacturer:

PUSH components
Schindelka & Dann GbR
Jahnweg 19
83714 Miesbach

Additional information

Weight	N/A
Dimensions	N/A
Material	Aluminium, powder-coated
Care Instruction	For winter use, we recommend regular cleaning of road salt
Origin	Germany

Scope of delivery

Scope of Delivery:

1x arm, in selected length
1x clamp
1x sticker (transparent) as paint protection
1x screw set
1x instruction manual
